HY-3100 series is a new generation of fiber grating temperature and strain online monitoring system equipment developed and produced by Haoyuan Optoelectronics. It has small size, high precision and large dynamic range. It can measure temperature, strain, pressure, displacement and other physical quantities at the same time, realizing remote, online, accurate and real-time monitoring of multiple monitoring points.
Features:
Real-time online monitoring
Compatible with multiple sensors at the same time
Simultaneous data collection of up to 1024 sensors
High precision
application:
Smart grid, power plant transmission and transformation monitoring
Mining operations, metal smelting monitoring
Road, bridge, tunnel and building structure monitoring
Oil storage and transportation, perimeter defense monitoring

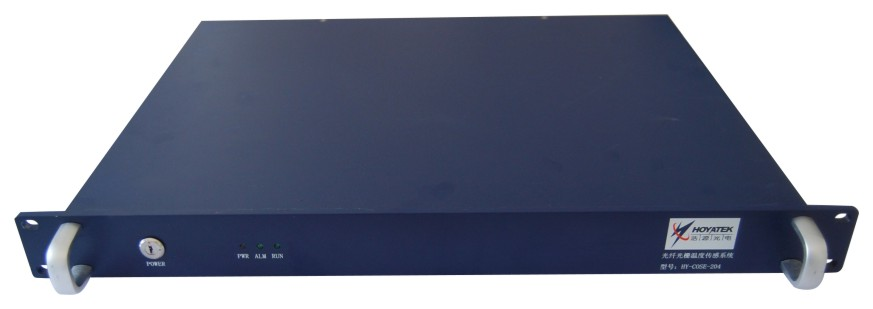

HY-3100 fiber grating signal analyzer

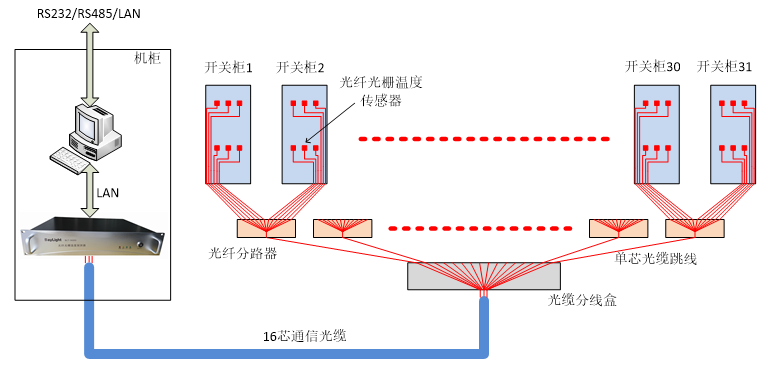

System architecture diagram
Technical parameters:
project | Parameter value | unit | Remark |
Temperature measurement range | -30 ～120 | ℃ | |
Wavelength resolution | 1 | pm | |
Temperature resolution | 0.1 | ℃ | |
Temperature measurement accuracy | ±0.5 | ℃ | |
Maximum number of channels | 64 | indivual | |
Maximum number of measuring points | 1024 | indivual | |
System software | Based on WINDOWS operating system | - | Data synchronization collection |
Alarm mode | Sound and light alarm | ---- | early warning, alarm |
System operating temperature | 0～ 45 | ℃ | |
power supply | 220V±10% | AC |
