The 1470-1660nm band broadband light source is a highly stable light source designed for scientific research and industrial production. Its working wavelength range covers the three optical fiber communication bands S, C and L (1 470nm ~ 1660 nm), and the output power is stable to meet the requirements of customers in different application fields. The internal laser device uses advanced ACC and ATC drive control circuits to ensure that the light source output is in a highly stable working state.
The serial port adjustable power function can be customized according to customer requirements to realize computer control of output power.
feature:
The output optical power is stable ( ≤ 0. 01 dB)
Wide wavelength range
Low spectral ripple
LCD status display
High-precision ACC and ATC circuits
application:
Fiber optic sensing light source
Optical device performance testing
laboratory science research

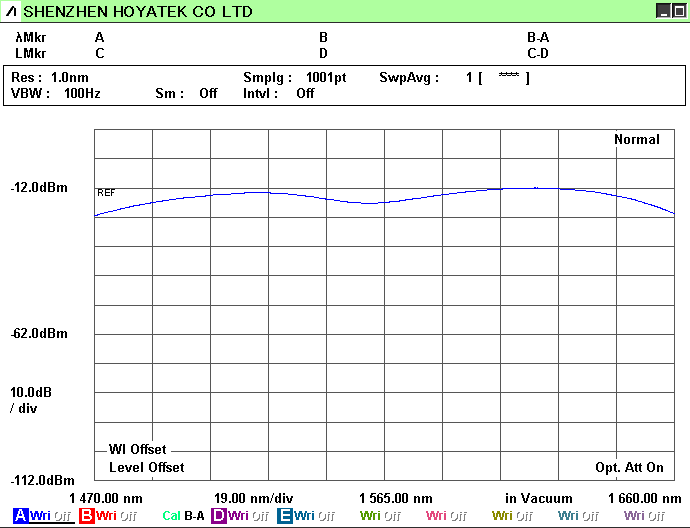

Typical spectrum :
Product ordering information (model specifications): H Y-ASE-SCL-7-B-FA
parameter | minimum value | Typical value | maximum value | unit |
Wavelength range | 1470 | 1660 | nm | |
Output power | 7 | mW | ||
Spectral ripple | 0.1 | 0.25 | dB | |
Optical power spectral density | -12 | -22 | dBm/nm | |
Spectral stability at each wavelength point | 0.05 | dB | ||
Spectral flatness | 10 | dB | ||
Output laser type | CW 5.0 - dB | |||
Output power stability @15min | 0.01 | dB | ||
Output power stability @ 8 h | 0.025 | dB | ||
Output isolation | 40 | dB | ||
working temperature | -20 | - | 65 | ℃ |
Storage temperature | -40 | - | 85 | ℃ |
humidity | 95 | % | ||
size | 300×220×100 | mm | ||
Working voltage | AC220V±10，50Hz | |||
Communication method | RS232 serial port (optional) | |||
Output fiber | Single mode 9/125um , length optional | |||
Output connector | FC/APC | |||
