(Product number: A-0002)

Product Introduction Product Parameters

Features:

Output optical power up to 20dBm

Spectral flatness better than 1.5dB

Wide wavelength coverage

Good spectrum and optical power stability

Small ripple

Low power consumption

Application:

Fiber optic sensing system equipment source

Fiber optic gyroscope, fiber optic sensing system

Fiber optic sensor (FBG, FP) testing

Fiber Bragg grating, DWDM, filter testing

Optical passive device testing

Optical fiber testing instruments

Optical sensing and optical communication experiments

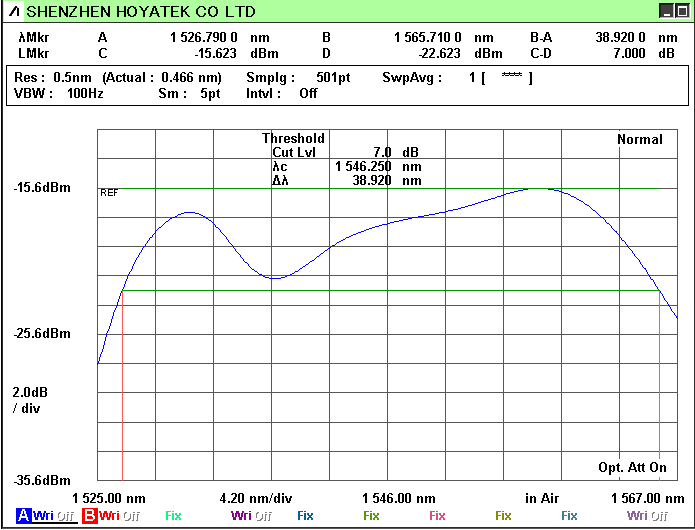

C波段ASE宽带光源(图1)

ASE-C-11-G

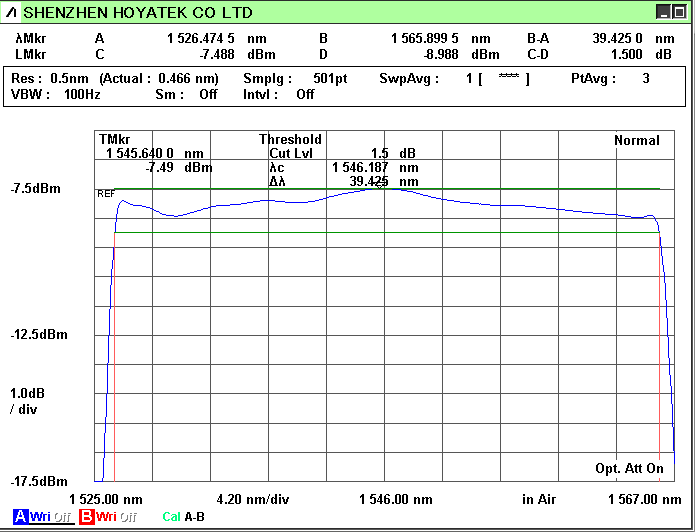

C波段ASE宽带光源(图2)

ASE-C-17-N

parameter	symbol	unit	numerical value
			ASE-CN	ASE-CG
Working wavelength	l	nm	1527～1565	1527～1565
Output power	After	dBm	10.0～19.0	10.0～13.0
Spectral density	Psd	dBm/nm	-11～-2	-11～-8
Spectral flatness	F	dB	≤7	≤1.5
Spectral stability	Ps	dB	≤±0.005 @15 min.
Output power short-term stability	Pss	dB	≤±0.005 @15 min.
Output power long-term stability	PLs	dB	≤±0.01 @8h.
Spectral ripple	R	dB	≤0.05
working temperature	TOP	℃	Module: -20 ~ +60
			Desktop: 0 ~ +60
Storage temperature	Ts	℃	-40 ～+70
relative humidity	RH	%	20～80
Power consumption@25℃	Pc	W	≤1
Maximum power consumption	Max. Pc	W	≤3
Dimensions (L×W×H mm)	mm	Module: 100×70×19; 80×60×19
		Desktop: 300×220×90
Pigtail type	SMF-28
Output optical interface type	FC/PC, FC/APC or customer customized
Alarm signalAlarm signal	Low Level Alarm Low Level Alarm
power supply	Module: DC 5V (manual: +3.3V~+5V), 3A Desktop: AC 220V±10%, 50Hz, 20W
