Features:

Output optical power up to 20dBm

Spectral flatness better than 1.5dB

Wide wavelength coverage

Good spectrum and optical power stability

Small ripple

Low power consumption


Application:

Fiber optic sensing system equipment source

Fiber optic gyroscope, fiber optic sensing system

Fiber optic sensor (FBG, FP) testing

Fiber Bragg grating, DWDM, filter testing

Optical passive device testing

Optical fiber testing instruments

Optical sensing and optical communication experiments

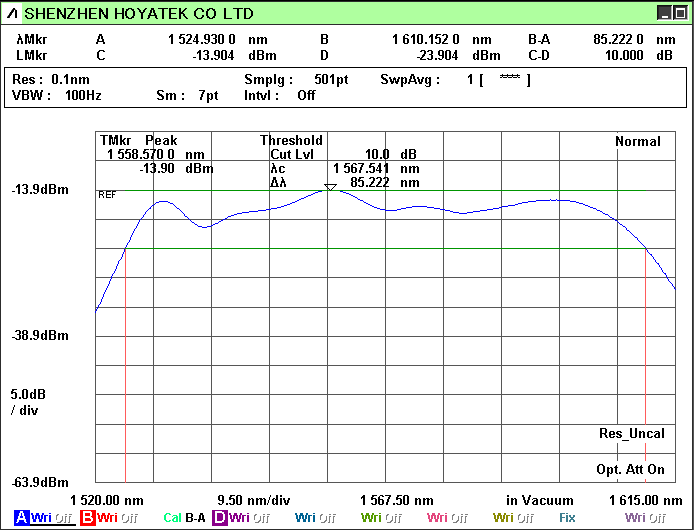

C+L波段ASE宽带光源(图1)

ASE-C+L-17-N

parameter

symbol

unit

numerical value

ASE-C+LN

Working wavelength

l

nm

1525~1610

Output power

After

dBm

10.0~17.0

Spectral density

PSD

dBm/nm

-17~-10

Spectral flatness

F

dB

≤10

Spectral stability

Ps

dB

≤±0.005  @15 min.

Output power short-term stability

Pss

dB

≤±0.005  @15 min.

Output power long-term stability

PLs

dB

≤±0.01 @8h.

Spectral ripple

R

dB

≤0.05

working temperature

TOP

Module: -20 ~ +60

Desktop: 0 ~ +60

Storage temperature

Ts

-40 ~+70

relative humidity

RH

%

20~80

Power consumption@25℃

Pc

W

≤1

Maximum power consumption

Max. Pc

W

≤3

Dimensions (L×W×H mm)

mm

Module: 100×70×19; 80×60×19

Desktop: 300×220×90

Pigtail type

SMF-28

Output optical interface type

FC/PC, FC/APC or customer customized

Alarm
signalAlarm signal

Low Level Alarm Low Level Alarm

power supply

Module: DC 5V (manual: +3.3V~+5V), 3A

Desktop: AC 220V±10%, 50Hz, 20W
