Features:
•Built-in energy detector, capable of constant energy operation for a long time
• Touch screen/computer can control simultaneously
•The control interface is simple and clear
Applications: Laser deposition of thin films, fine processing, material surface treatment, laser annealing
EL series product features:
•Pulse energy up to 800mJ
• Using magnetic booster excitation circuit design to extend the life of the thyristor
•Built-in energy feedback system, good energy stability
•Internal trigger/external trigger
Applications: Laser deposition of thin films, fine processing, material surface treatment, laser annealing
EL30 technical parameters | |||
Wavelength(nm) | 193 | 248 | 308 |
Pulse energy(mJ) | 200 | 500 | 250 |
Maximum repetition frequency (Hz) | 30 | 30 | 30 |
Average power(W) | 5 | 14 | 12 |
Energy stability (1 sigma %) | 1 | 1 | 1 |
Pulse width(FWHM)(ns) | 25 | ||
Beam size (VxH, FWHM) (mm 2 ) | (26±1)X(9±1) | ||
Divergence angle (VxH,FWHM) (mrad 2 ) | ≤3x1 | ||
powered by | 220VAC，10A，50Hz | ||
cool down | Water cooled, 2 to 5 L/min | ||
Interaction mode | touch screen or computer | ||
external trigger | Optical and electrical signals | ||
Synchronous output signal | electric signal | ||
weight | 300kg | ||
Dimensions(LxWxH) | 1310X405X870m3 | ||

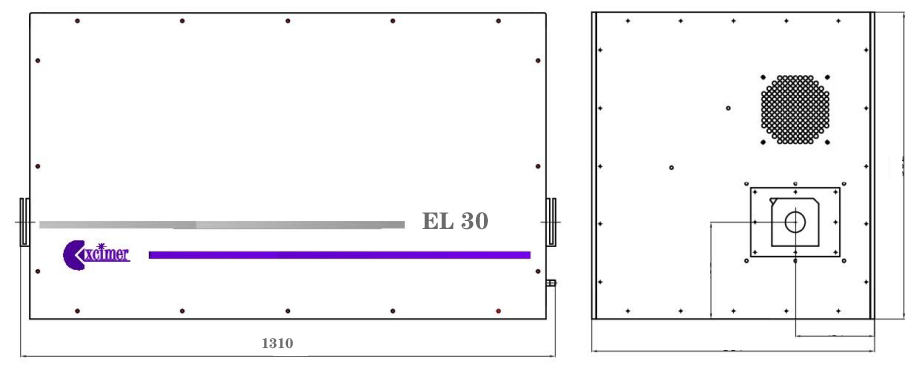

Specification
EL30：1310×405×870mmm (300kg）
