The DFB laser module is a continuous light output, high output optical power, narrow linewidth distributed feedback (DFB) semiconductor laser photoelectric module developed for the wavelength division multiplexing communication system. The wavelength range meets the ITU recommended standards, the output optical side mode rejection ratio is high, and the relative intensity noise is low. The module has built-in high-precision temperature control circuit and automatic power APC drive circuit, which makes the module have high wavelength stability and power stability. Built-in over-current/over-voltage protection and other perfect safe use design, strict process control and test process make the product can be reliably used in optical fiber communication systems for a long time.
Features:
Ø High power output (adjustable power output)
Ø Excellent power stability and wavelength stability
Ø ITU-T recommended standard channel
Ø Channel spacing 25/50/100GHz
Ø Customizable (central wavelength, output power)
Ø High stability
Ø Ultra-narrow line width
Ø With remote control
Ø Can provide wavelength adjustment
Ø Can provide power adjustment
Ø Special wavelength can be customized
Application areas:
Ø Optical device production and testing
Ø Optical communication system test
Ø Optical fiber sensing system
Ø HFC, CATV network
Ø Teaching experiment system
Ø Optical network detection
Ø Optical sensing and optical communication experiment
Typical spectrum:

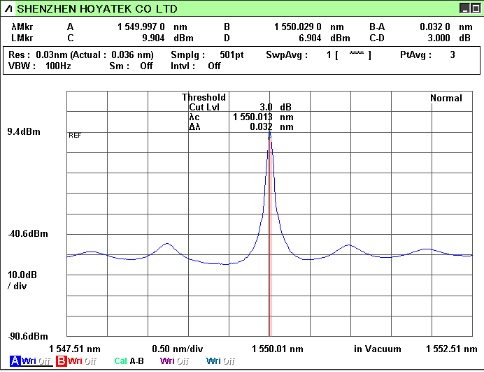

1550nm spectrum

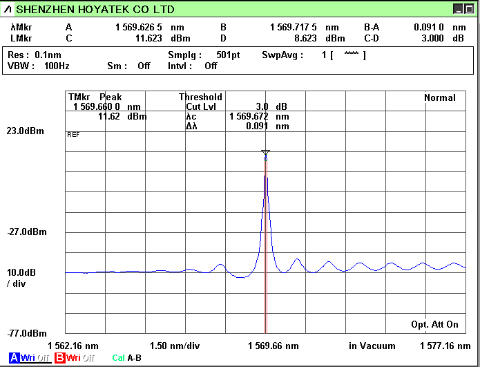

1570nm spectrum

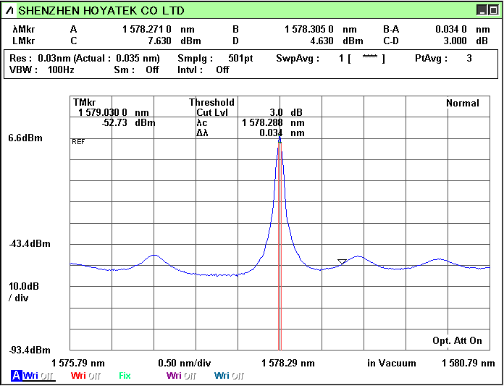

1578nm spectrum

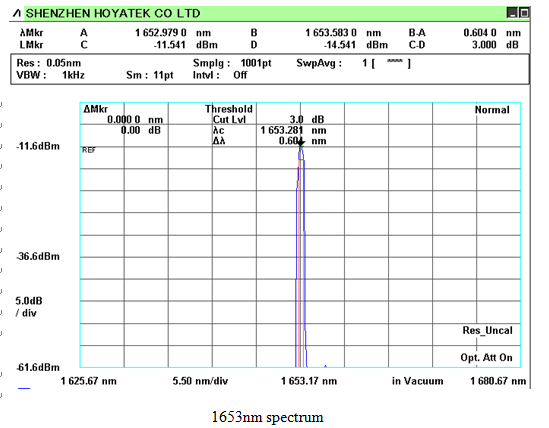

1653nm spectrum

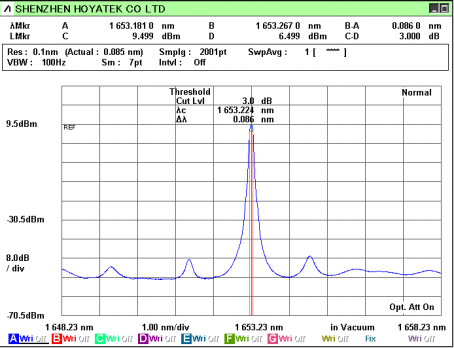

1653nm spectrum

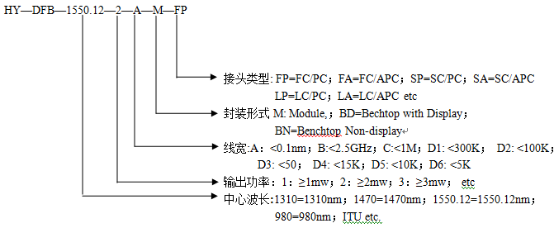

Ordering Information:
company | Product Category | - | Center wavelength | - | Optical power | - | Line width | - | Encapsulation | - | Interface Type | - | Adjustable power | - | Polarization state | |
HE | - | DFB | - | XXXX | - | XX | -
| XX | -
| X | -
| XX | -
| X | -
| XX |
1310：1310nm | 5：5 mW | 3M：3MHz | M: Module | FA:FC /APC | Null: not adjustable | Null: Single-mode fiber | ||||||||||
1550：1550nm | 10：10 mW | 1M：1MHz | B: Desktop | SA: SC /APC | T: Adjustable power | PM: Polarization maintaining fiber | ||||||||||
1530：1530nm | 20：20mW | 50K：50KHz | ||||||||||||||
THAT-T | 50：50mW | 10K：10KHz |
technical parameter:
Parameter index | Minimum | Typical value | Max | unit | |
Working wavelength (ITU-T) | DWDM （1527 ~ 1590） CWDM （1270 ~ 1610） | nm | |||
Maximum output power | - | 10 | 100 | mW | |
Short-term power stability @ 15 min. | - | ±0.005 | ±0.01 | dB | |
Long-term power stability@8h. | - | ±0.01 | ±0.03 | dB | |
Spectral linewidth (FWHM) | - | 1 | - | MHz | |
Side mode suppression ratio (SMSR) | 35 | 40 | 45 | dB | |
Relative intensity noise (RIN) | - | -140 | -150 | dB/Hz | |
Output isolation | 30 | 35 | - | dB | |
Operating temperature | -20 | - | +60 | ℃ | |
storage temperature | -20 | - | +70 | ℃ | |
Relative humidity | 5 | - | 95 | % | |
Power consumption | - | 1 | 4.5 | W | |
Dimensions | Module: 100×70×19; 80×60×19 | mm | |||
Desktop: 300×220×90 | |||||
power supply | Module: DC 5V; Desktop: AC220V±10%, 50Hz, 20W | ||||
Fiber type | SMF -28 | ||||
Connector type | FC/APC, FC/PC or customer-defined | ||||
Alarm | Low Level Alarm | ||||
Remarks: 1. The stability test environment is 23±2℃ after the product is warmed up for 15 minutes;
2. Other parameter test conditions: fixed ambient temperature, continuous light output.
3. Center wavelength, output power can be customized according to customer needs
