Product Introduction Product Parameters

Features :

High stability

High output power

ITU standard wavelength

Modular desktop optional

Narrow linewidth

Built-in isolator

application :

Long distance DWDM network

CATV network

Optical communication, optical sensing test and measurement

Seed laser light source

Pipeline monitoring, security

coherent communication

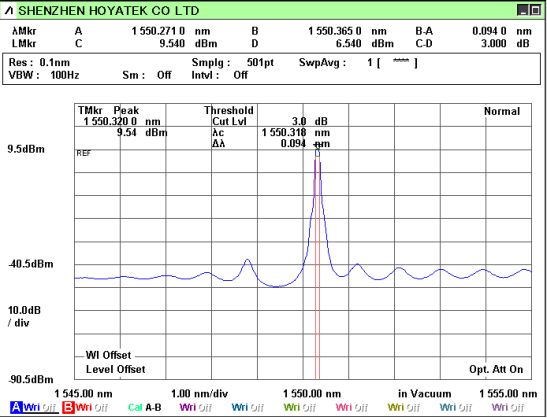

spectrum

窄线宽激光光源(图1)

Parameter index	minimum value	Typical value	maximum value	unit
Working wavelength	ITU-T band			nm
Output power	-	10		mW
Short-term power stability @15 min.	-	0.01		dB
Long-term power stability @8h.	-	0.02		dB
Spectral linewidth	-	50	-	KHz
Side Mode Suppression Ratio ( SMSR)		40	50	dB
Relative intensity noise ( RIN)	-	-140	-150	dB/Hz
Output terminal isolation		35	-	dB
working temperature	-20	-	+70	℃
Storage temperature	-40	-	+85	℃
relative humidity	5	-	95	%
Power consumption	-	3		W
Overall dimensions	Module: 100×70×19			mm
Overall dimensions	Desktop: 3 0 0 × 220 × 100			mm
power supply	Module : DC 5V /3A Desktop : AC220V±10%
Fiber type	SMF/PMF
Connector type	FC/ A PC or customized
